Trailmaster Taurus 200gx UTV

Trailmaster Taurus 200gx UTV

Regular price $ 5,975.00
WE CAN RESERVE THIS UNIT FOR YOU BUT YOU HAVE TO CONTACT US VIA TEXT OR THIS FORM 11/16 2020 to 11/30 2020 showroom is ClOsEd but you can reserve your gift!! Just fill out the contact sheet and we will call ASAP. text # 575-616-2348

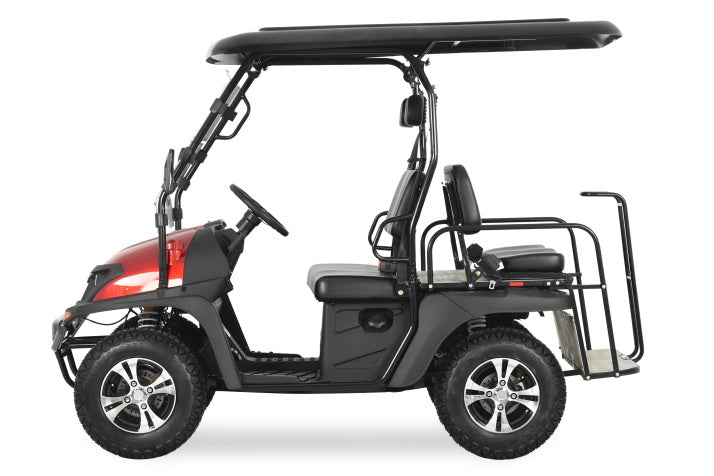

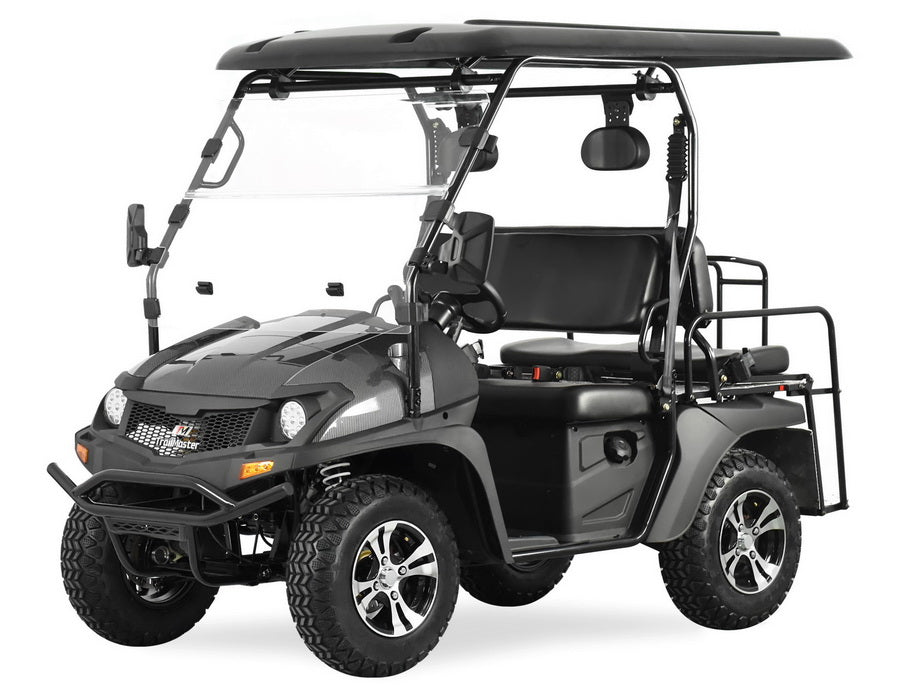

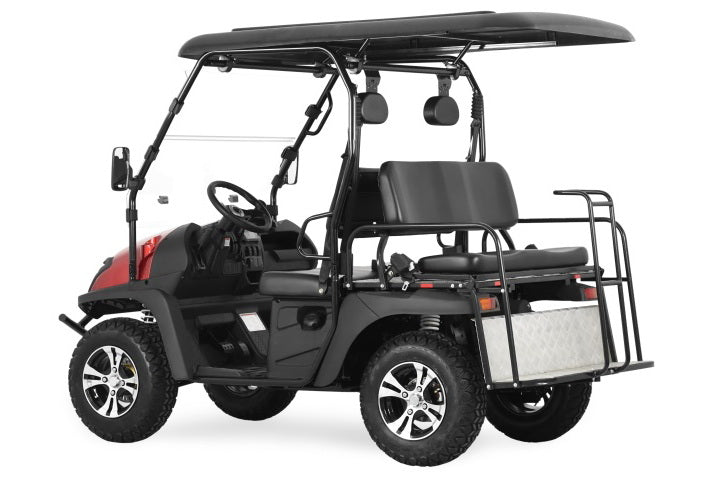

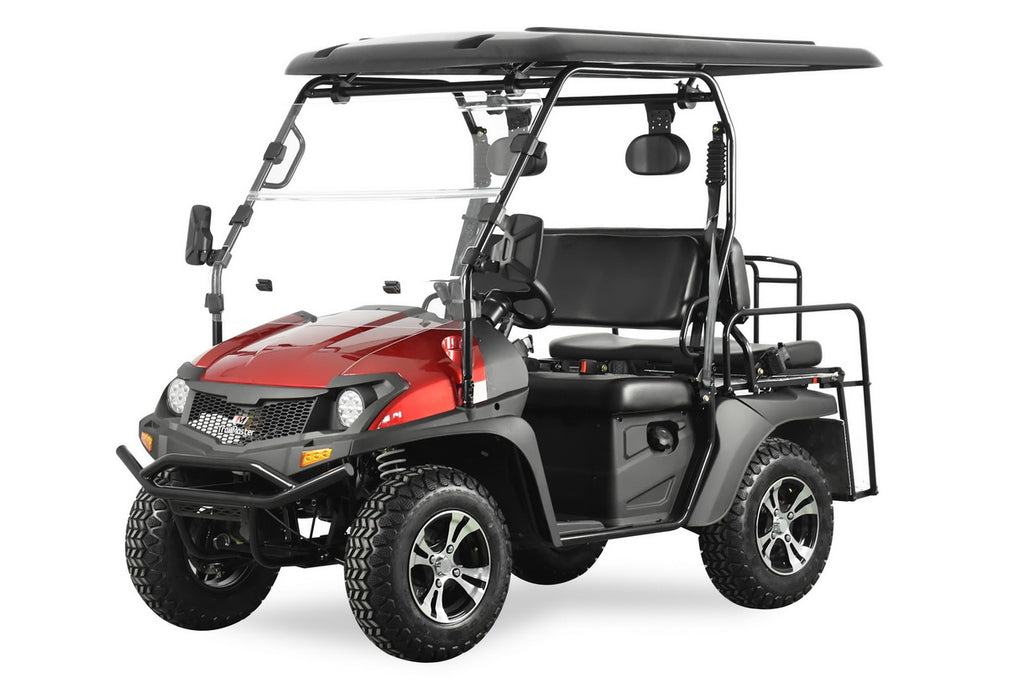

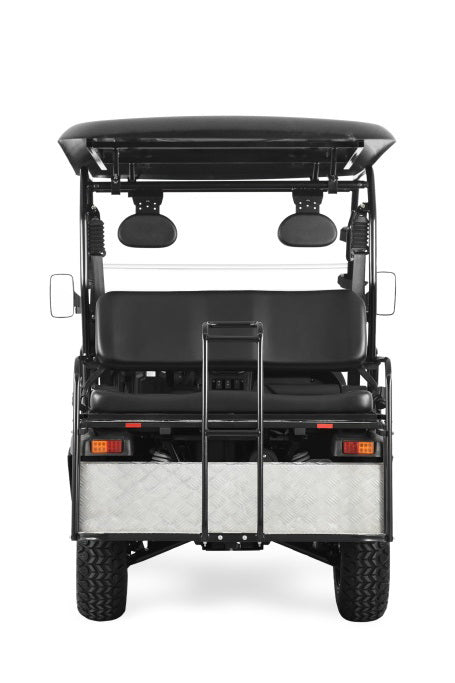

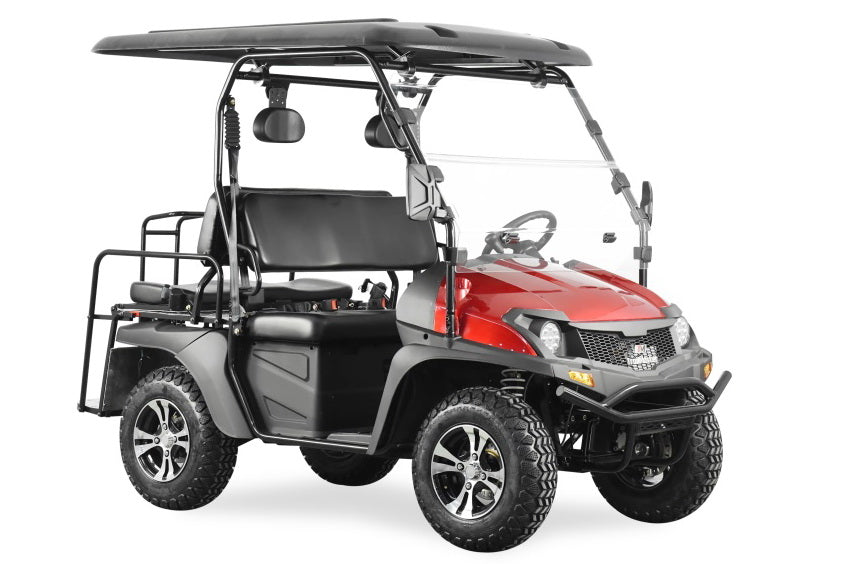

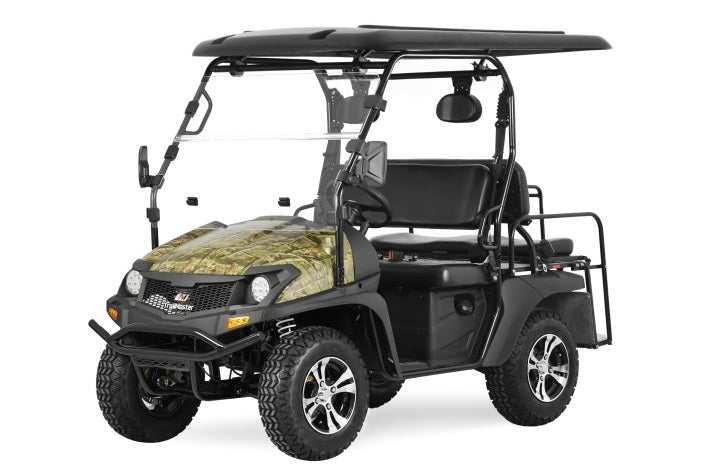

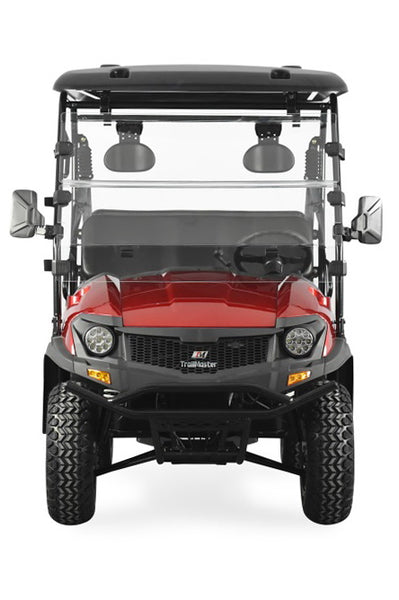

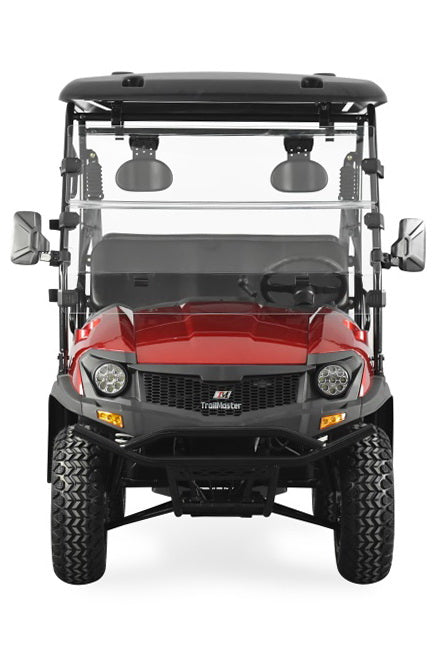

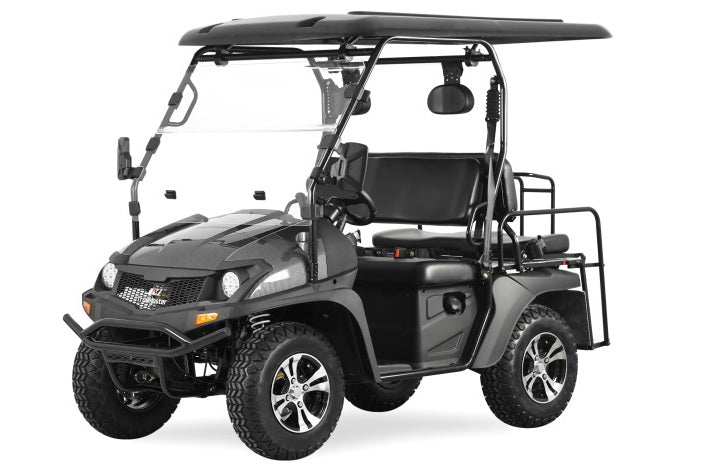

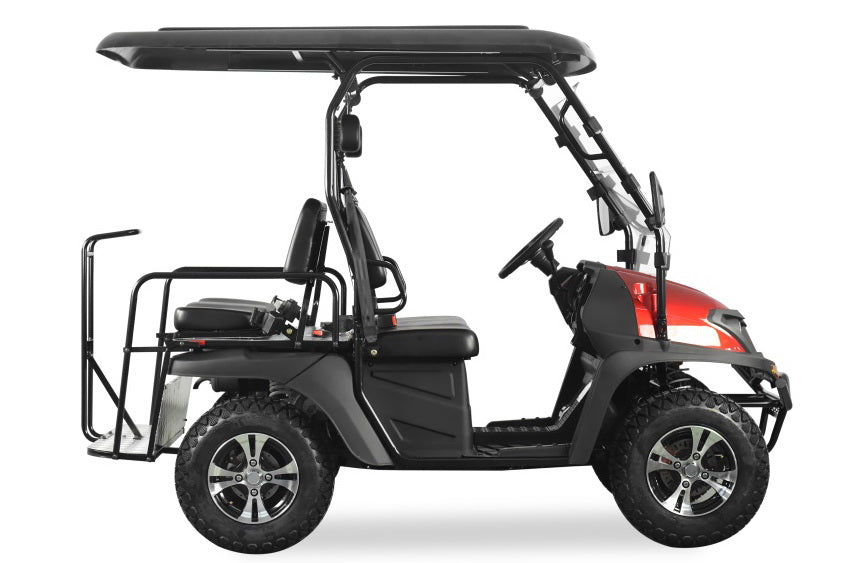

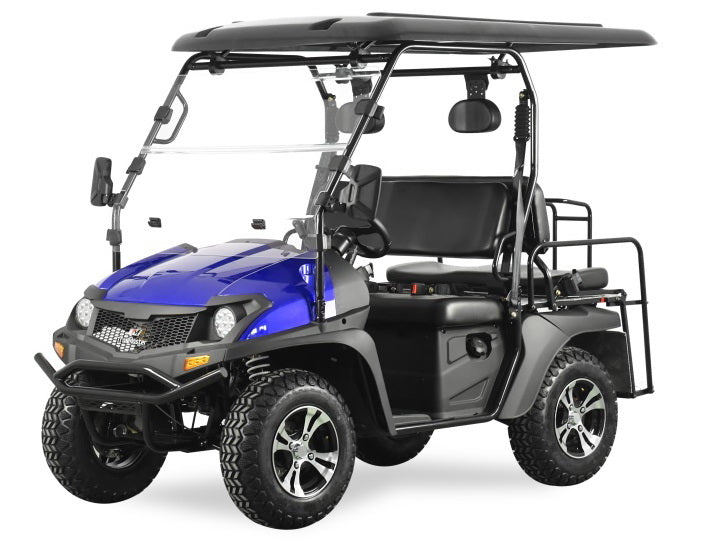

Trailmaster Taurus 200gx UTV



The Taurus 200GX is an identical unit of the Taurus 200 MFV with the exception of the extended hard roof top in exchange of the dump bed on the MFV version, a popular request.


The Taurus 200GX is equipped with a 9.5 HP air and oil cooled high performance 177cc GY6 engine with internal reverse set up. It comes standard with a H/L gear. The low gear mode has a 40% better climbing ability than the non H/L version and can climb up to 30 degree slopes with ease. The Taurus 200 has significantly greater torque than the non H/L gear version machines. It is also equipped with 4 wheel independent suspension for optimal driving experience.


Other notable features includes: aluminum wheels package, front and rear 24 x 8-12 / 24 x 8-12 turf tires, Hi/Lo LED headlights, turn signals, rearview side mirrors, digital dashboard, hard top, steel front bumper, retractable seatbelt, 12 volt outlet, cup holder.

ENGINE INFORMATION


• EPA Certificated
• Engine Type: 4-stroke, single cylinder, air and oil cooled
• Displacement: 177.3cc
• Compression Ratio: 8.8:1
• Max HP: 9.5HP
• Bore & Stroke: 62.5X57.8 mm
• Max Torque and Crankshaft Speed: 11.0/4500 N.m/(RPM)
• Nominal Power and Crankshaft Speed: 6.5/6500 kw/(RPM)
• Max Speed: 25mph
• Climbing Ability: 30 degrees
• Ignition: C.D.I
• Starting System: Electric
• Battery: 12V 9Ah
• Carburetor Brand: Deli
• Engine Oil: SAE 15W/40

GENERAL INFORMATION


• Transmission: Auto, L-H-N-R
• Drive Train: Shaft Drive; 2 WD:
• Drive Mode: Rear Shaft Drive, Rear differential
• Suspension, F/R: Front MacPherson, Rear Dual A-ARM
• Brakes, F / R: Both hydraulic brakes,
Disc
• Tires, F / R: 24 x 8-12 / 24 x 8-12
• Fuel Tank Capacity: 4.8 gallons
• Wheels: Aluminum
• Weight, G.W. / N.W.: 1136 lbs/ 880 lbs
• Max Load: 800 lbs

DIMENSION INFORMATION


• Wheelbase: 63”
• OA L x W x H: 108”x54”x74”
• Seat Height: 33”
• Min Ground Clearance: 11”

KEY FEATURES

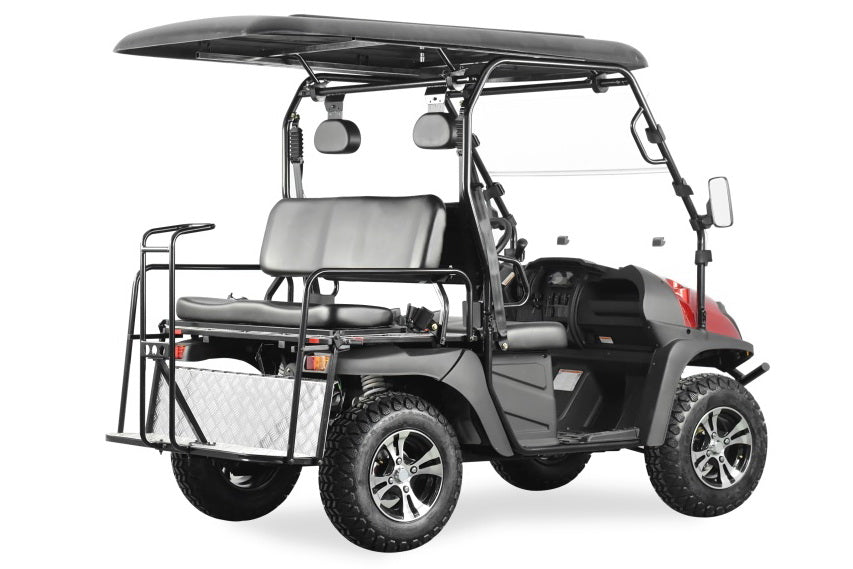

• Equipped with rear flip seat with extended hard roof top. Can be used as a neighborhood golf cart to carry up to 4 persons.
• Equipped with H/L gear, low gear mode has 40% better climbing ability than the non H/L version & can climb up to 30 degree slopes with ease.
• Air and oil cooled high performance 177.3 cc GY6 engine with internal reverse set up, with rear shaft direct drive, more reliable power transmission, higher transmission efficiency;
• Four-wheel independent suspension for much better driving experience
• Heavy duty frame, net weight 880 lbs, max load 800 lbs for 4 adult with flip seat
• Digital dashboard
• LED Hi/Lo head light
• Rear view side mirrors
• Sporting steering wheel
• Turn signals
• Safety harness seatbelt
• Big dual purpose tires: F / R: 24 x 8-12 / 24 x 8-12
• Polished aluminum wheels
• Extended Hard top
• Adjustable heavy duty front and rear shock absorber
• Rack and pinion steering wheel
• Front and rear hydraulic disc brake
• Large gas tank
• Horn



If you need another variety or size we can see what is available.  Come to the store.  This is not available for purchase online or shipping.
